SPECIFICATIONS

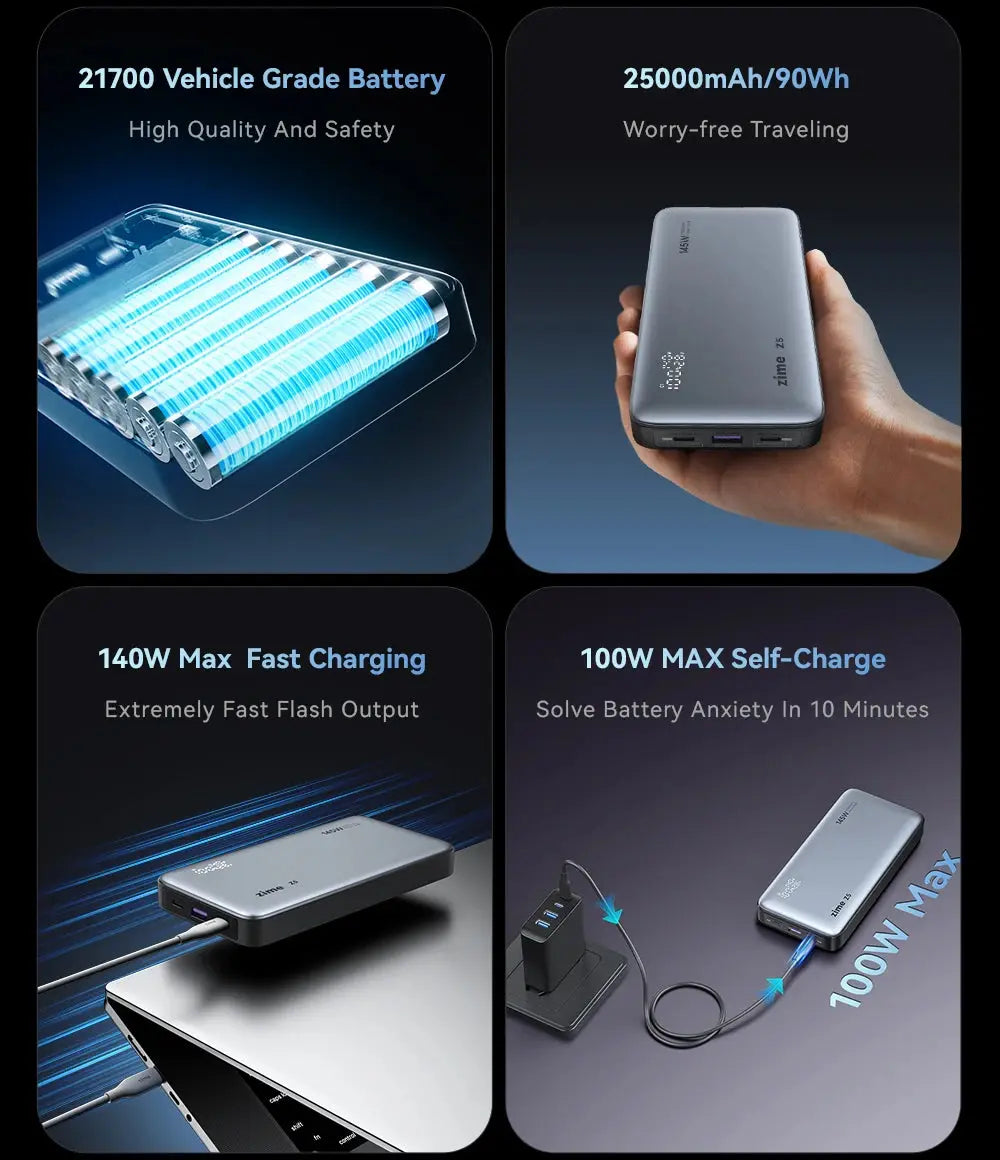

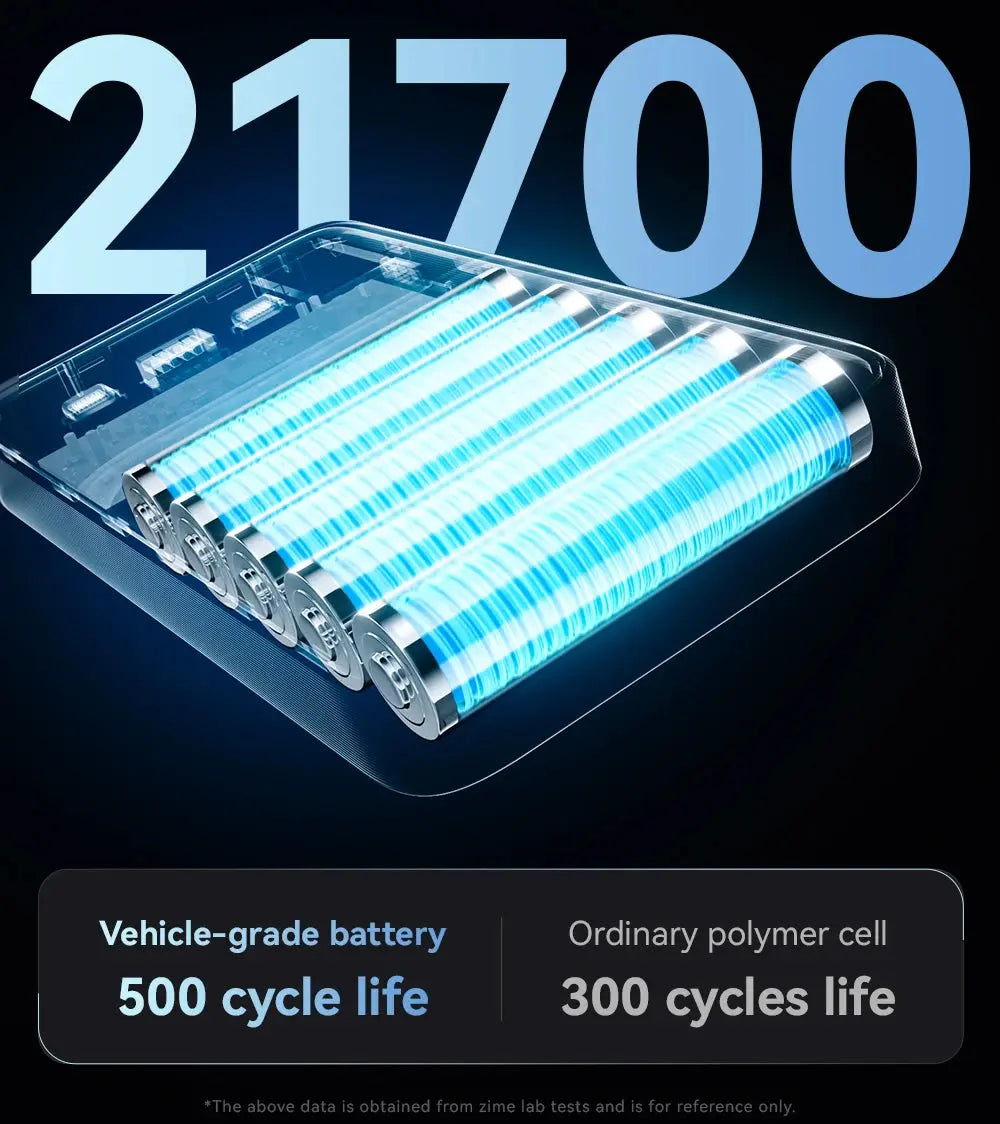

Battery: Cell: 5x 21700 Li-ion (3.6V/5000mAh)

Battery Type: Lithium Ion Battery

Brand Name: zime

Cell Capacity: 25000mAh

Certification: CE

Certifications: CE/CCC

Features: Digital Display,Charger & Battery in 1

Hign-concerned Chemical: None

Input: USB-C1: 100W (5-20V/5A) USB-C2: 65W (5-20V/3.25A)

Input Interface: Micro USB

Max Output: 100W

Model: Z5

Multi-Port Max: C1+C2: 100W+45W C1+A: 100W+45W C2+A: 15W+15W Triple Port: 100W+15W+15W

Origin: Mainland China

Output: USB-C1: 140W (5-28V/5A, PD3.1) USB-C2: 100W (5-20V/5A) USB-A: 65W (UFCS/QC3.0/SCP)

Output Interface: USB-A,USB-Type C

Rated Output: 14000mAh (5V/6A)

Shell Material: Plastic

Smart Features: Digital Display Low-Current Mode Pass-Through Charging Auto Sleep (10s)

Support Quick Charge Technology: Two-way Quick Charge

Type: Portable Power Bank

ZIME Model: Z5

Specification

Brand: zime

Name: Z5

Battery Capacity: 25000mAh

Cell Capacity:14000mAh

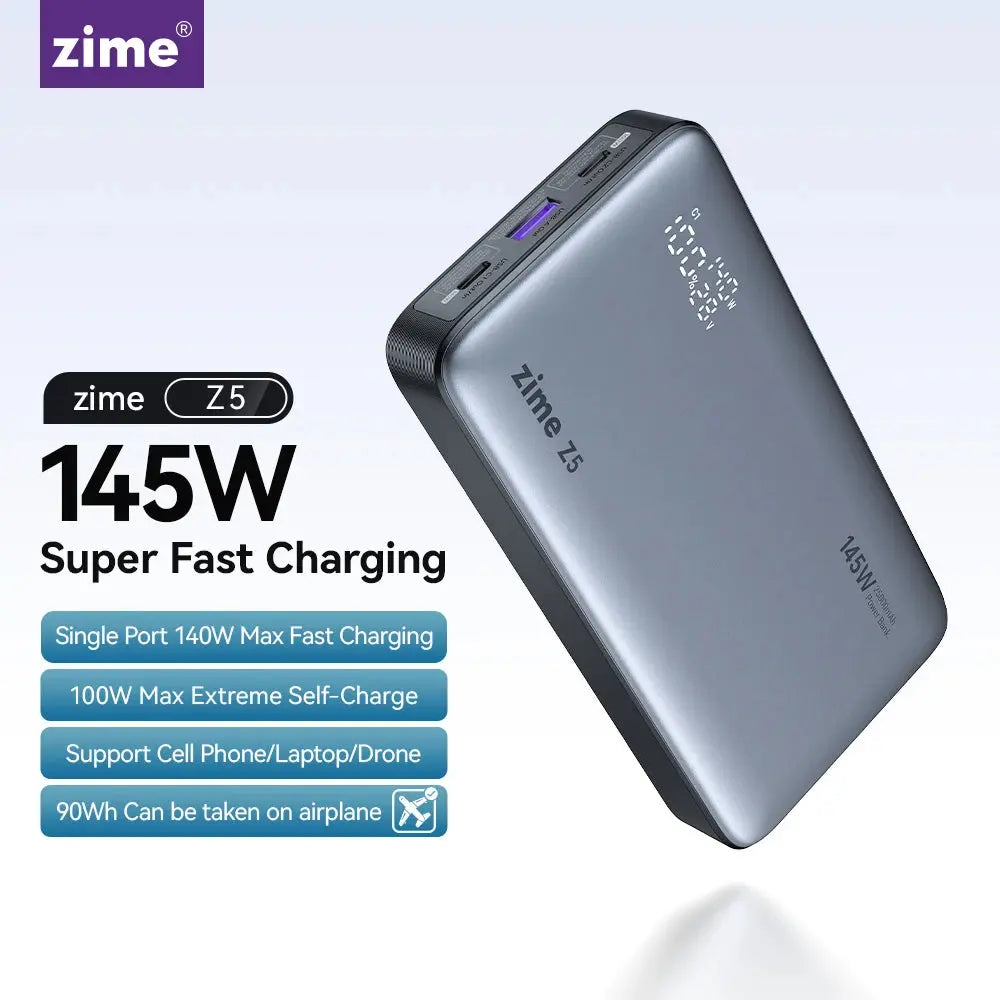

Product: zime 145W 25000mAh Two-way Fast Charging Power Bank

Color: Sliver

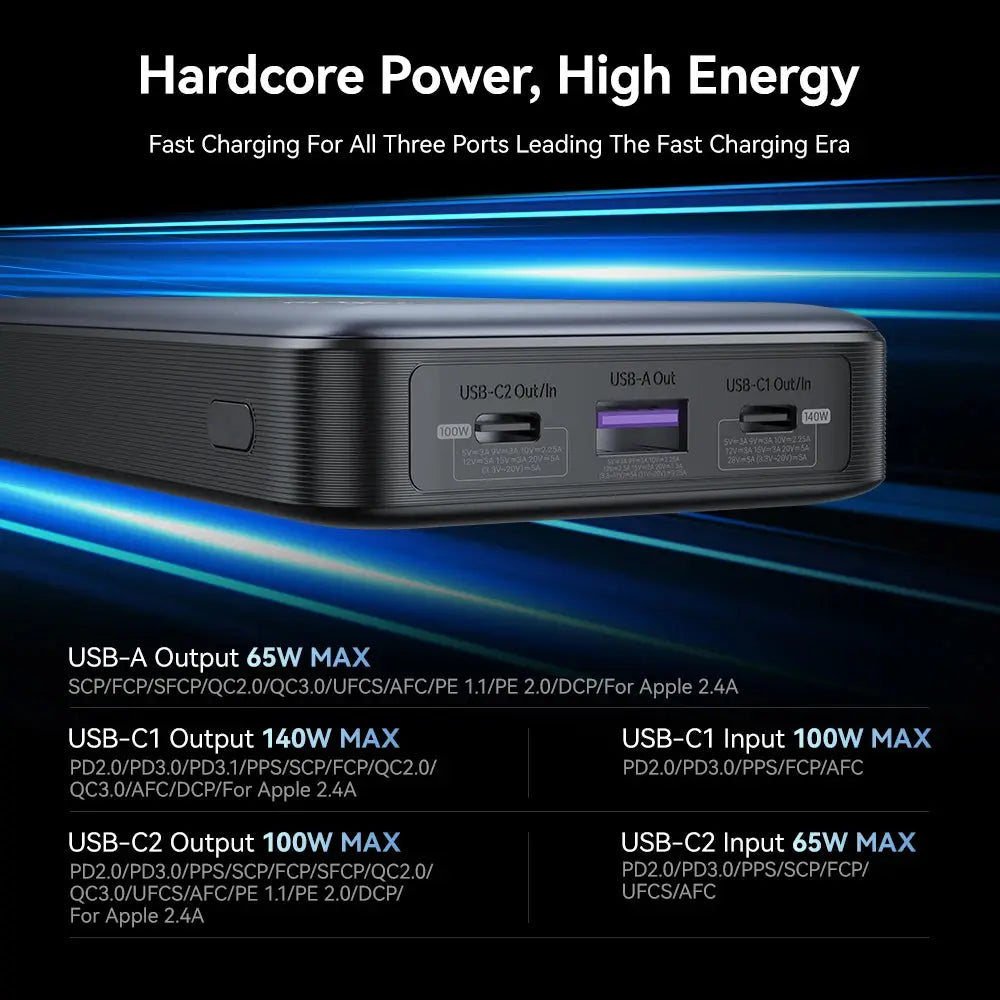

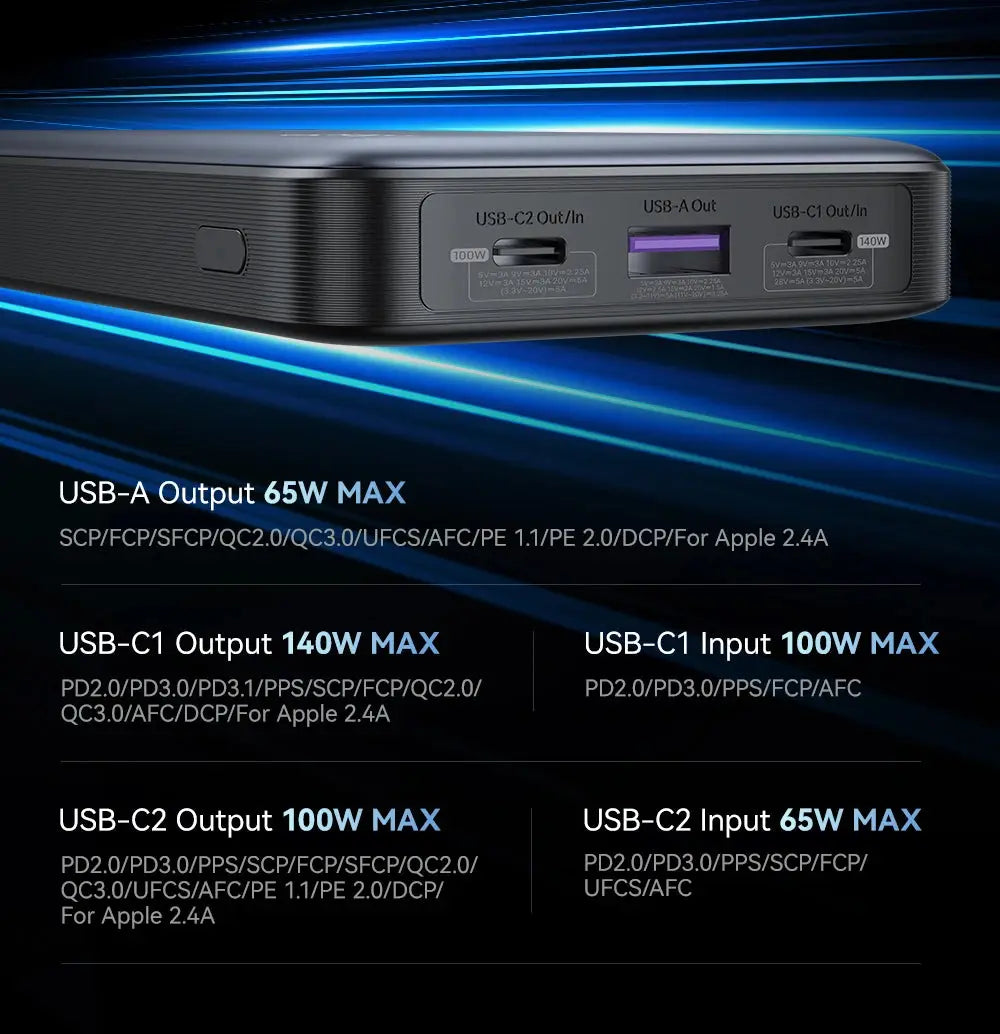

Interfaces: 2C1A (2 USB-C, 1 USB-A)

USB-A Port:

Output protocols: UFCS, QC2.0/3.0, AFC, SCP, FCP, SFCP, PE1.1/2.0, DCP2A, Apple2.4A

Output parameters: 5V/3A, 9V/3A, 12V/2.5A, 10V/2.25A, 15V/2A, 20V/1.5A, (3.3~11V)/5A, (11V~20V)/3.25A (max 65W)

USB-C1 Port:

Input protocols: PD2.0/3.0, PPS, FCP, AFC

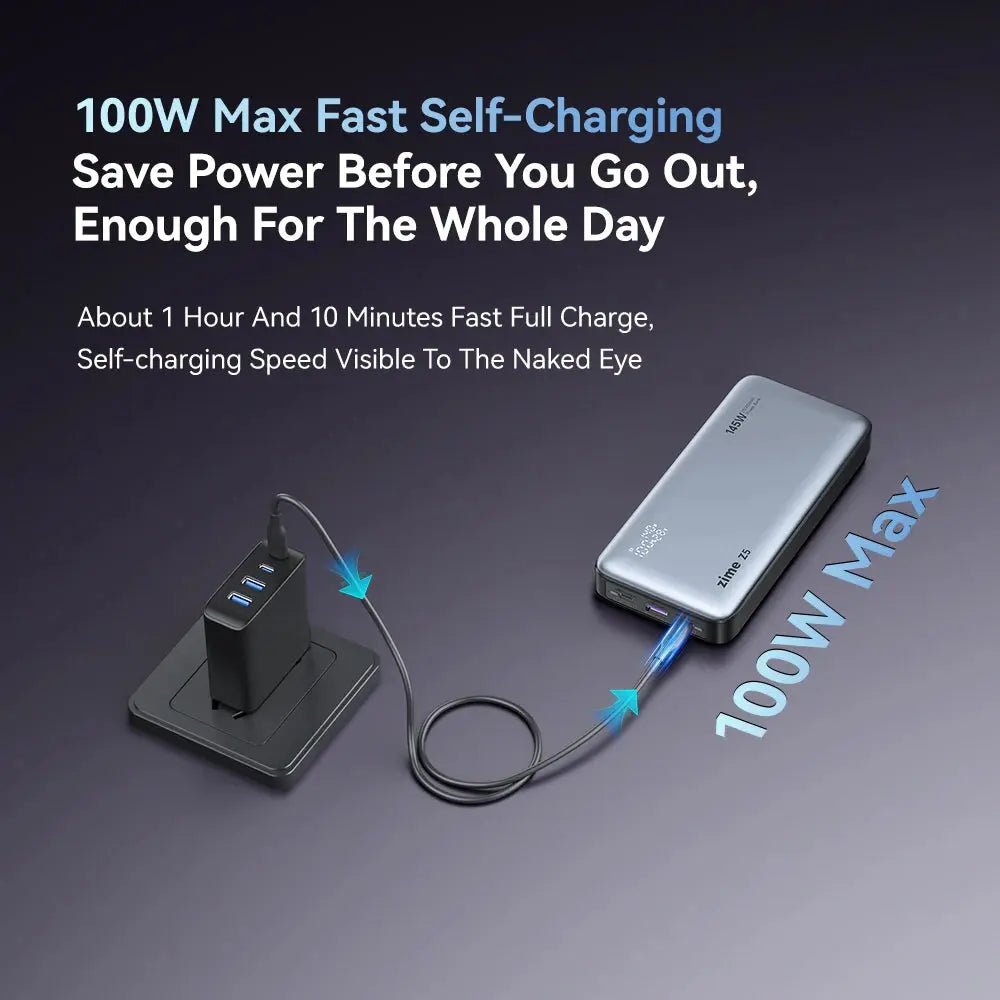

Input parameters: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W)

Output protocols: PD2.0/3.0/3.1, PPS, QC2.0/3.0, AFC, FCP, SCP, DCP, Apple2.4A

Output parameters: 5V/3A, 9V/3A, 10V/2.25A, 12V/3A, 15V/3A, 20V/5A, 28V/5A, (3.3~20V)/5A    (max 140W)

USB-C2 Port:

Input protocols: PD2.0/3.0, PPS, SCP, FCP, UFCS, AFC

Input parameters: 5V/3A, 9V/3A, 10V/2.25A, 12V/3A, 15V/3A, 20V/3.25A, (3.3~11V)/5A, (11V~20V)/3.25A

Output protocols: PD2.0/3.0, PPS, UFCS, QC2.0/3.0, AFC, SCP, FCP, SFCP, PE1.1/2.0, DCP2A, Apple2.4A

Output parameters: 5V/3A, 9V/3A, 10V/2.25A, 12V/3A, 15V/3A, 20V/5A, (3.3~20V)/5A (max 100W)

Multi-port Output Max Power:

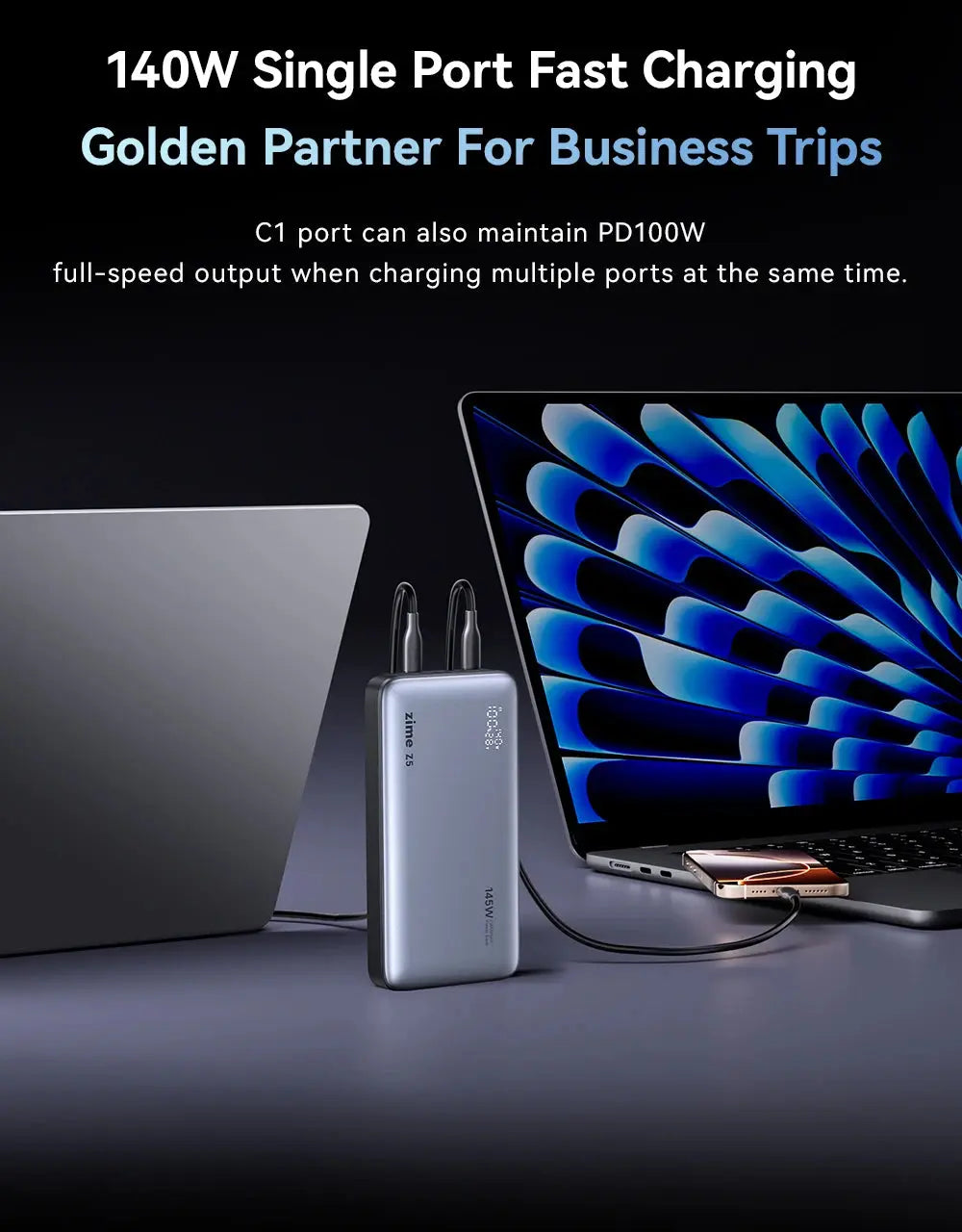

C1+C2 / C1+A1: 100W+45W

C2+A1: 15W+15W

C1+C2+A1: 100W+15W+15W

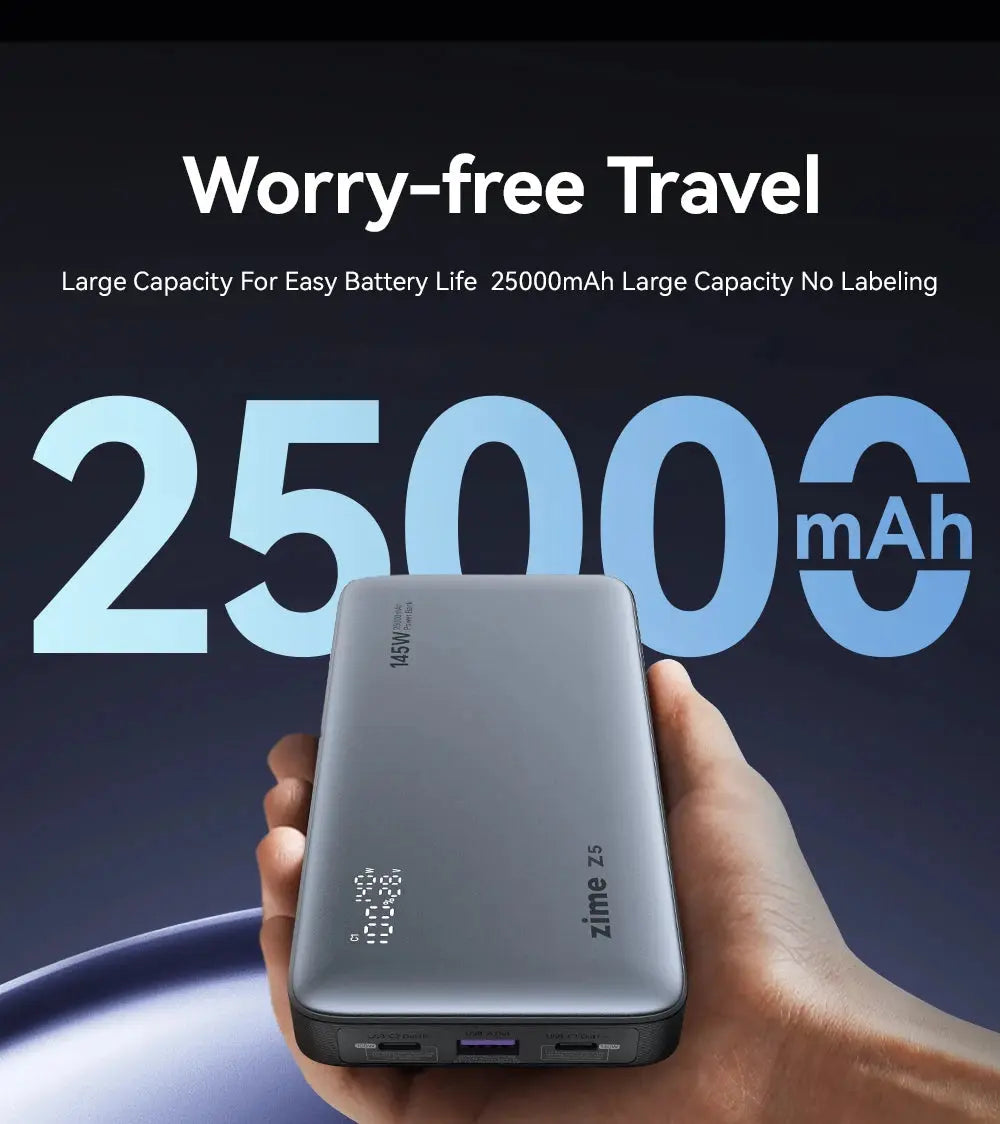

Capacity: 25000mAh/90Wh (Can be carried on the airplane)

Material: ABS+PC

Size: 159.7*82*27mm

Features

· 145W Bidirectional Super Fast Charging: Supports high-speed charging and discharging with multiple fast-charging protocols, meeting the needs of various digital devices.

· Multi-Interface Compatibility: Equipped with 2 USB-C ports and 1 USB-A port, compatible with UFCS, QC2.0/3.0, PD2.0/3.0/3.1, PPS, AFC, SCP, FCP, etc., adapting to different devices.

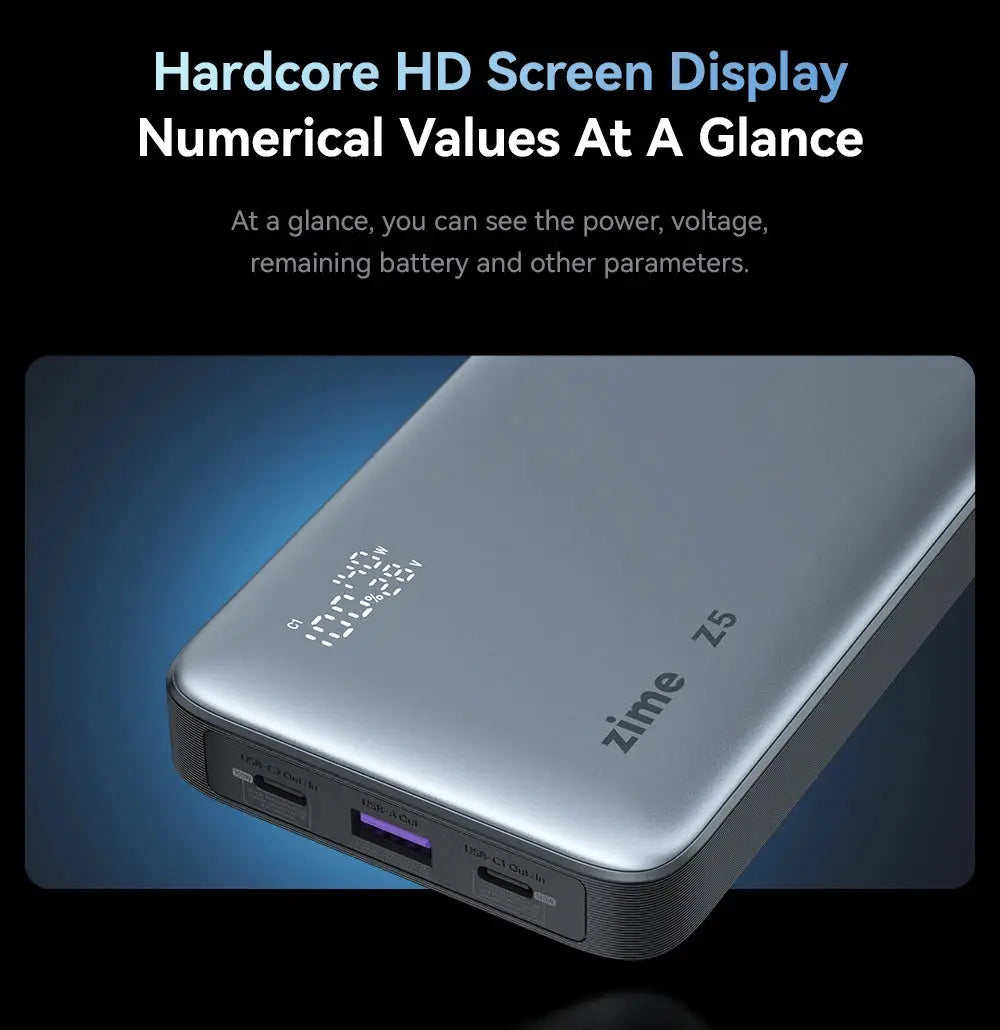

· Digital Display: Clearly shows power level, voltage, power, working port, and status for intuitive monitoring.

· Small Current Mode: Double-click to enter/exit, ideal for charging Bluetooth headsets and other small devices (runs for 2 hours without shutdown current detection).

· Intelligent Protection: Multiple safeguards against overcharging, over-discharging, overcurrent, and short circuits; integrated NTC for real-time temperature monitoring to ensure safety.

· High Efficiency & Capacity: 25000mAh lithium battery (14000mAh output at 5V/6A) with ≥82% conversion efficiency, using SW6306+IP2366 chips for stable performance.

· Certified Safety: Complies with CE and CCC standards, ensuring reliable use.

Packing included

1 x Power Bank

1 x USB Cable

1 x User Manual

1 x Certificate of Conformity
