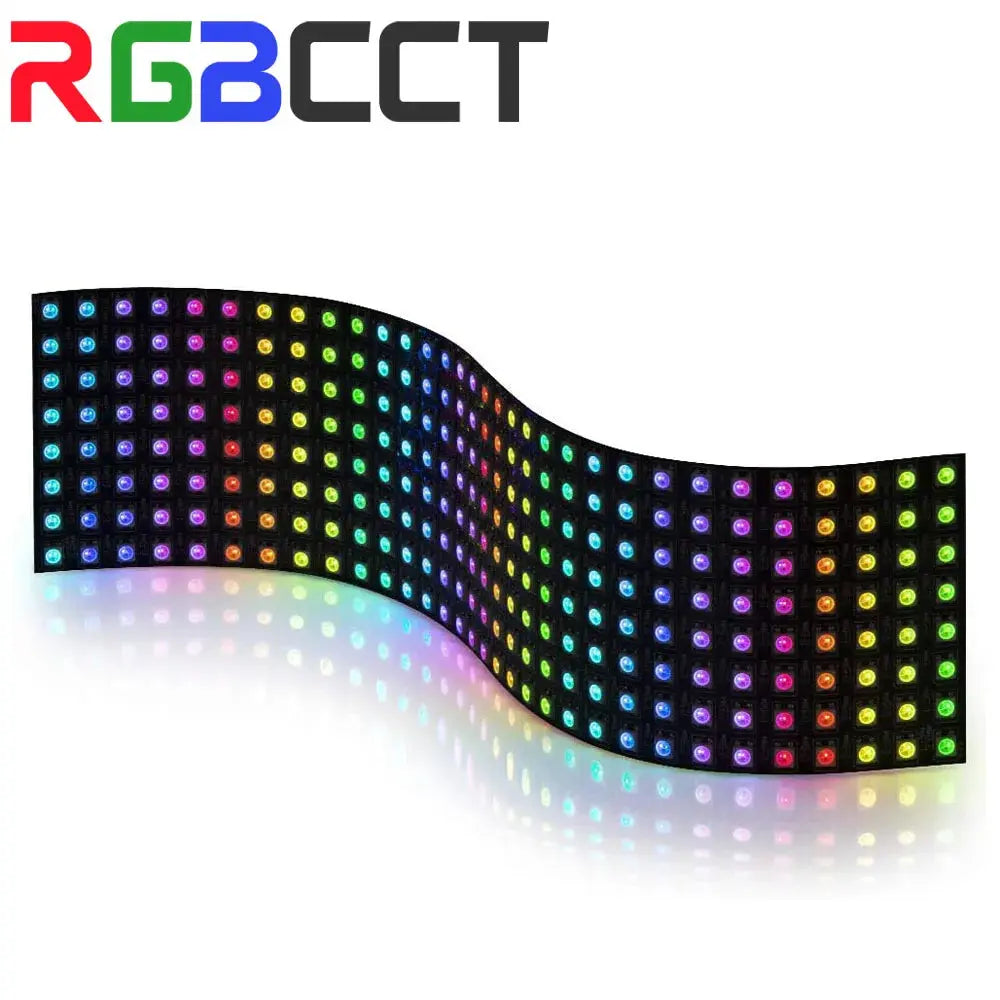

WS2812B RGB Flexible Pixel Led Module Panel 8x8/16x16/8x32 Matrix Screen WS2811 WS2812 IC Individually Addressable DC5V

Note:

Only Have Led Panel, Not Include Led Power And Led Controller!
WS2812B Led Panel Must Use DC5V Power Supply,
And Must Need Led Controller Control!

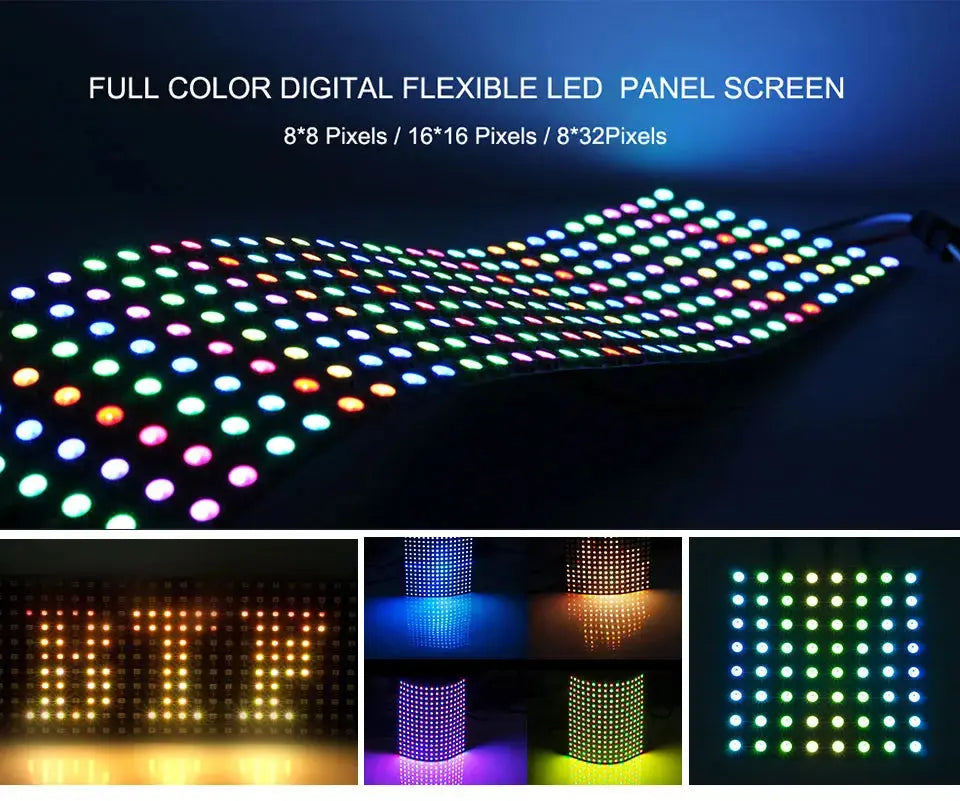

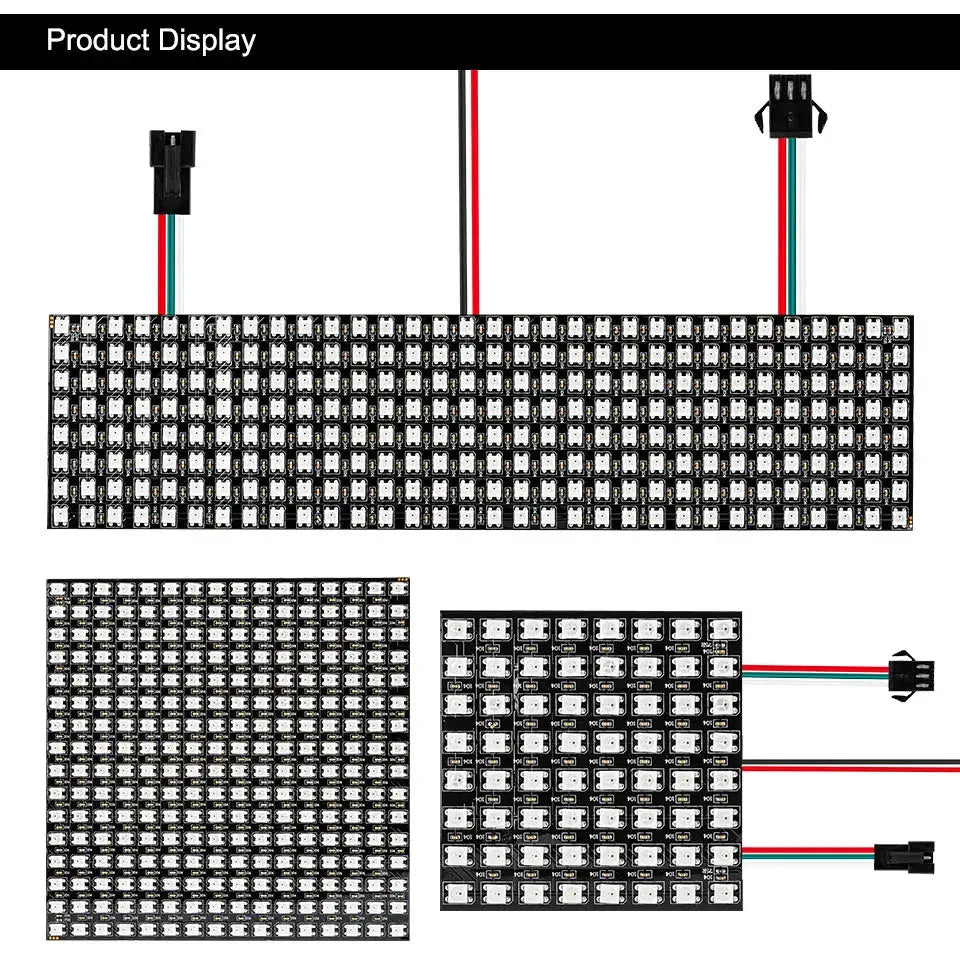

Four Size:

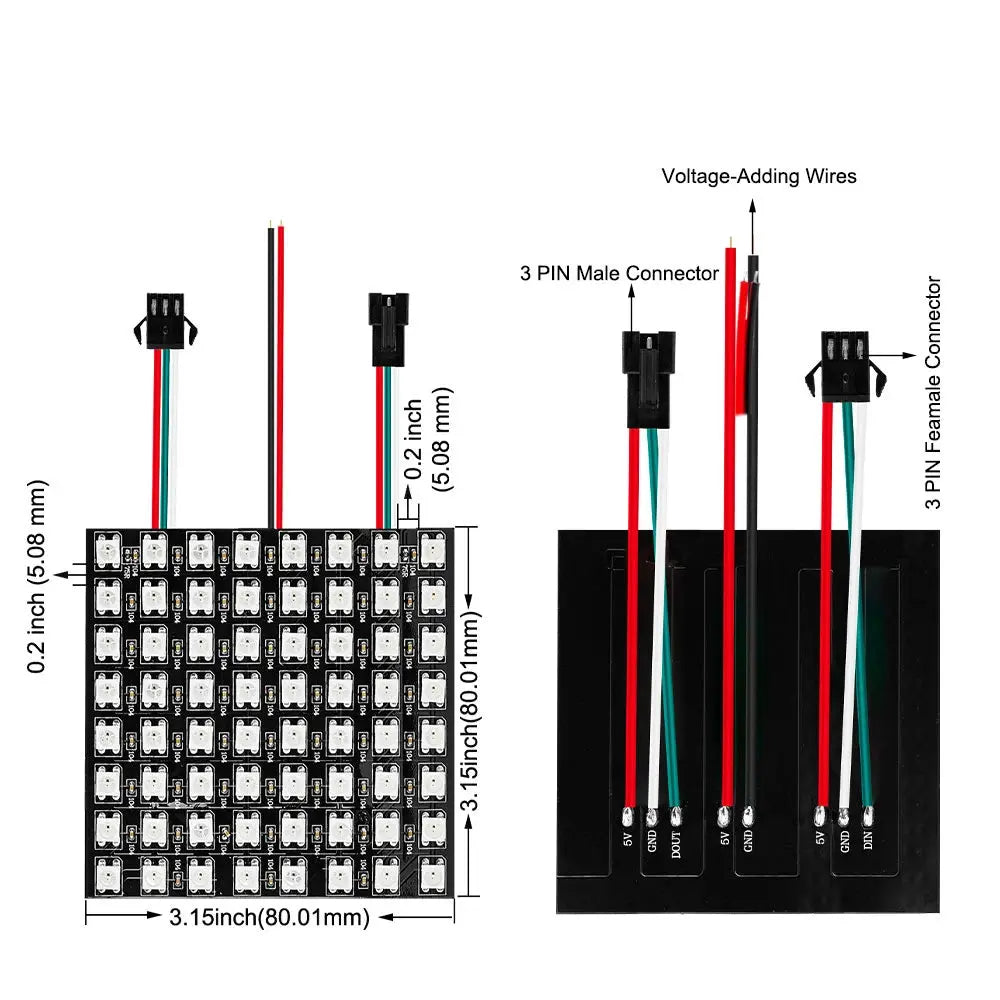

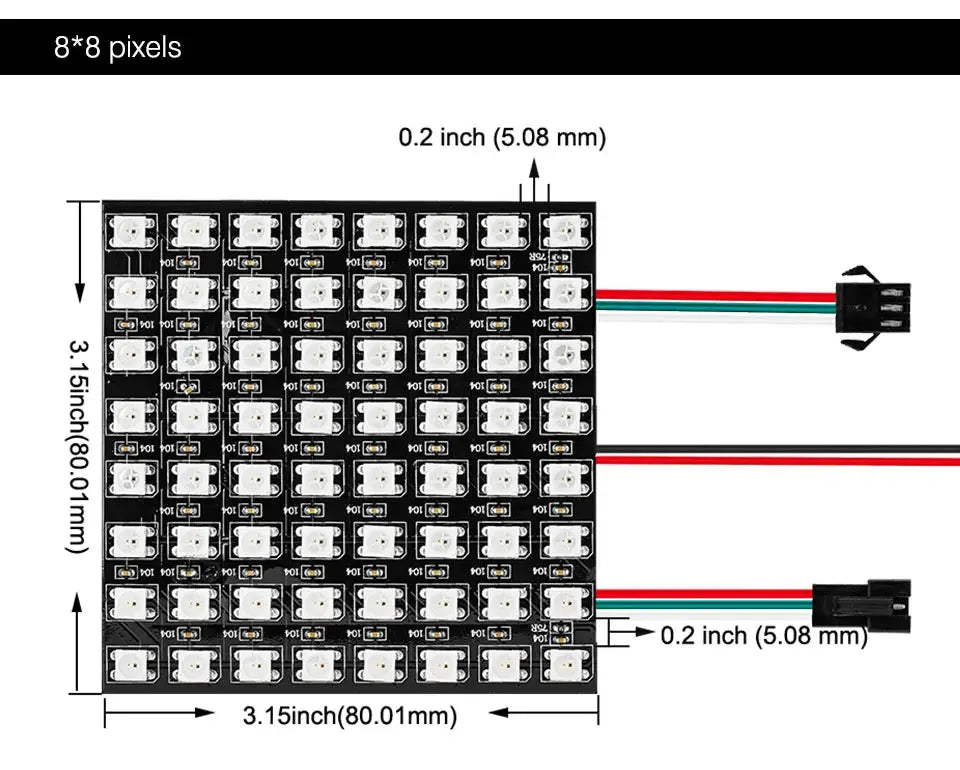

8*8, 64leds, 8cm*8cm

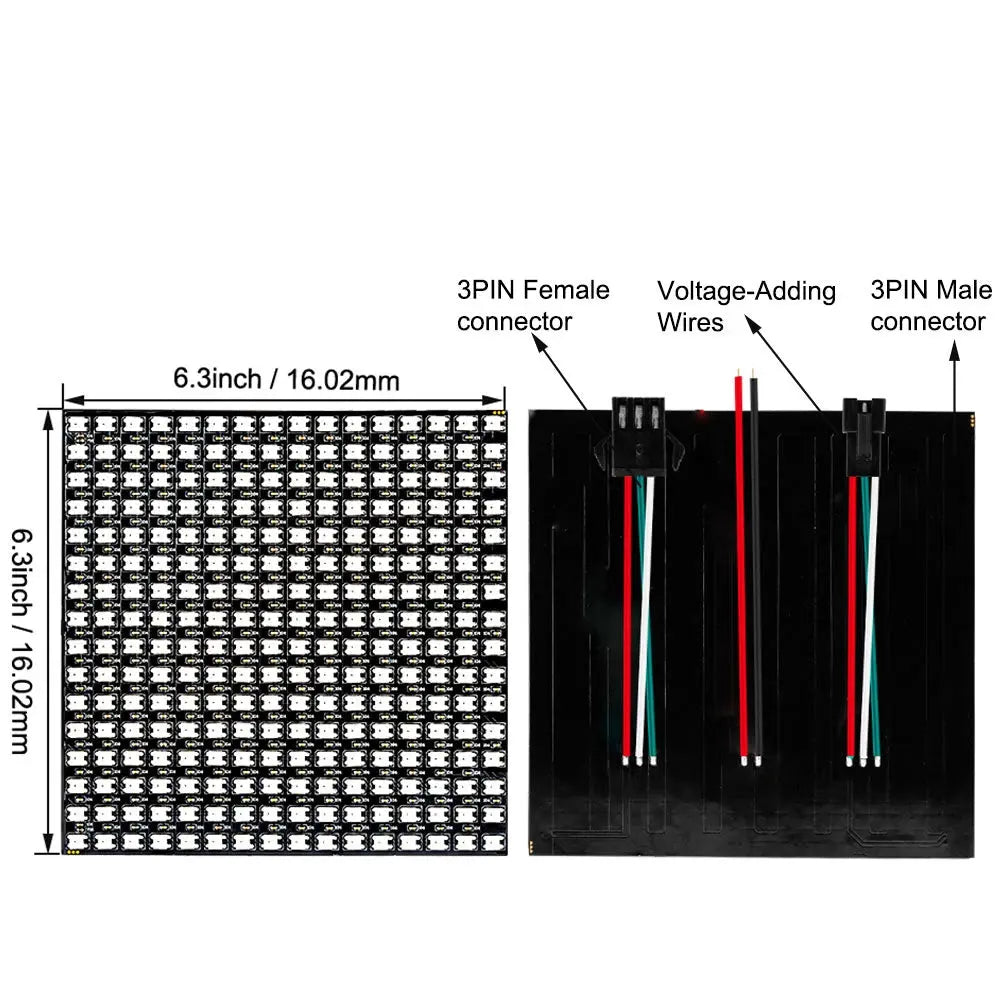

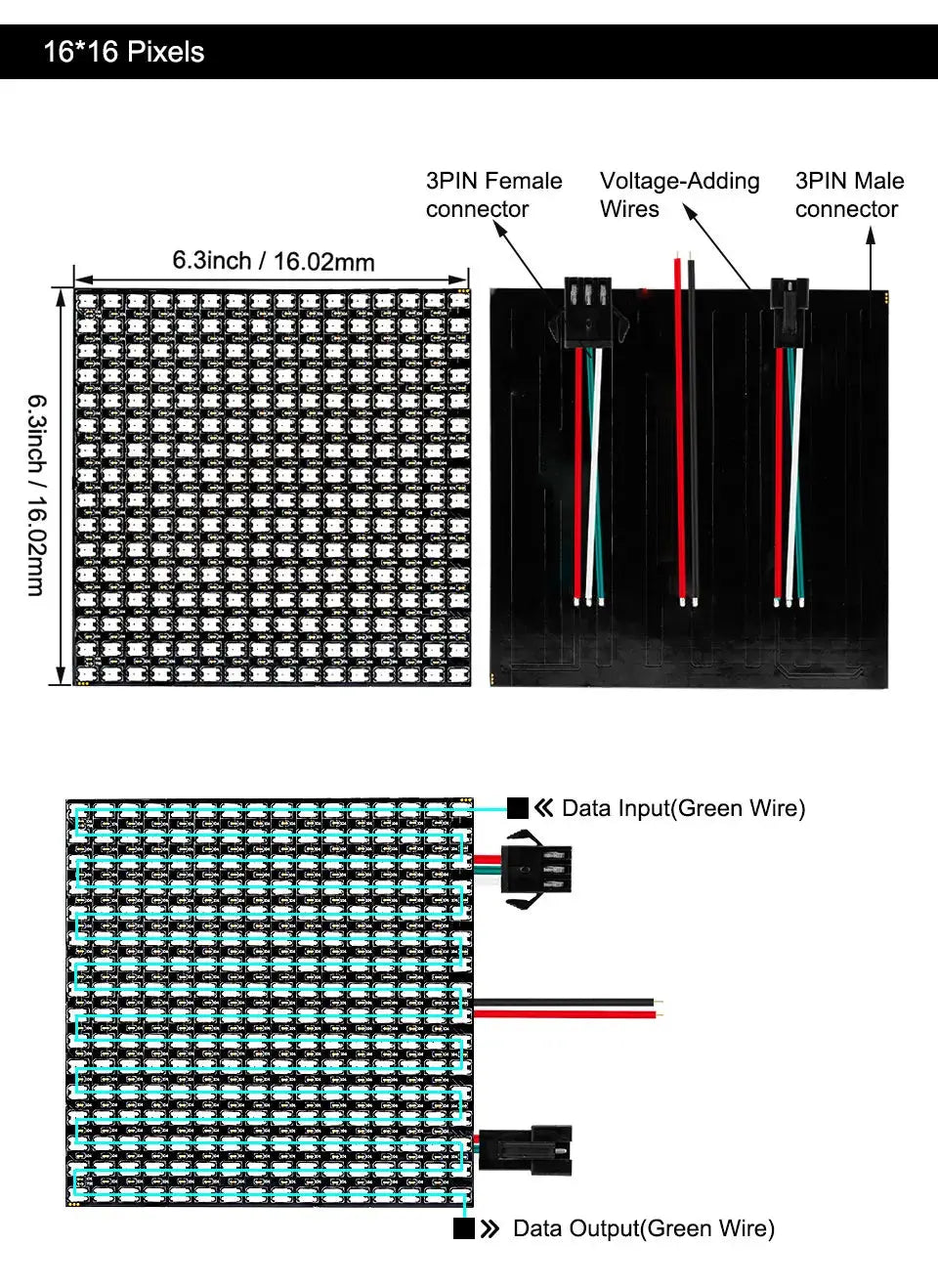

16*16, 256leds, 16cm*16cm

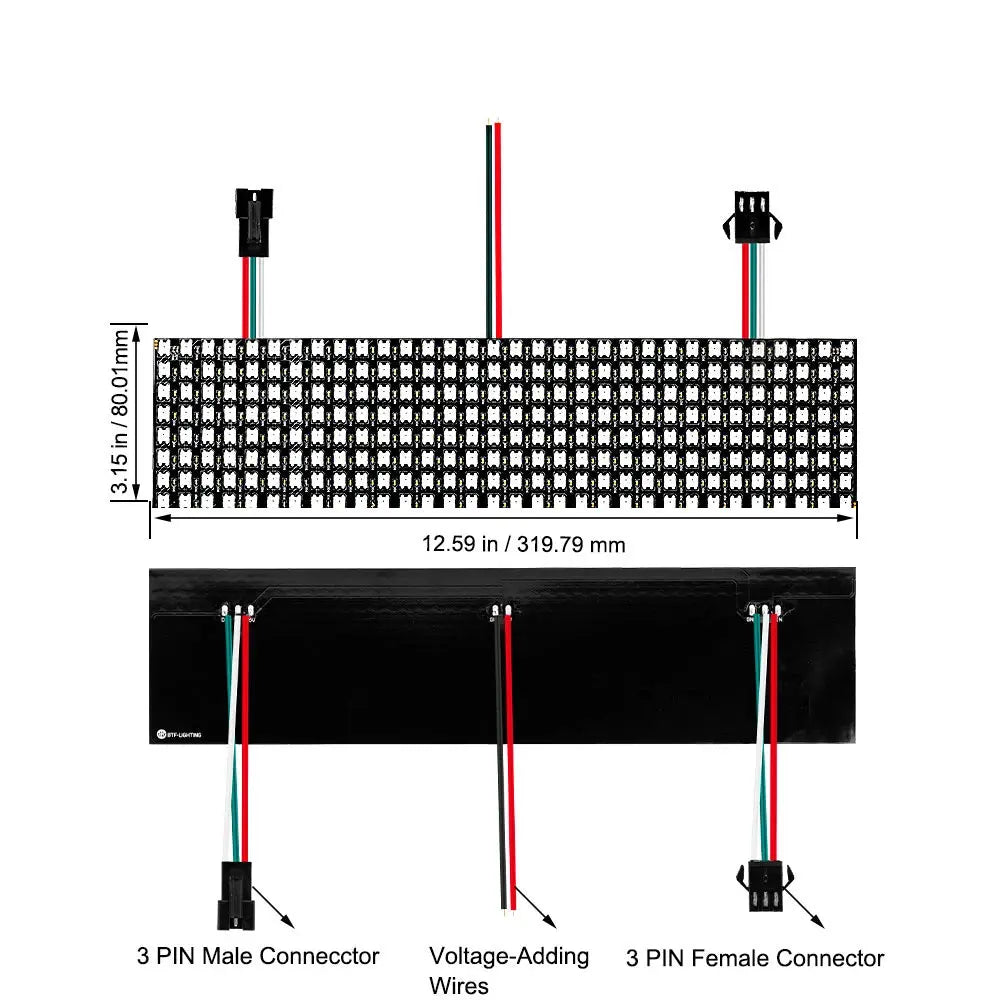

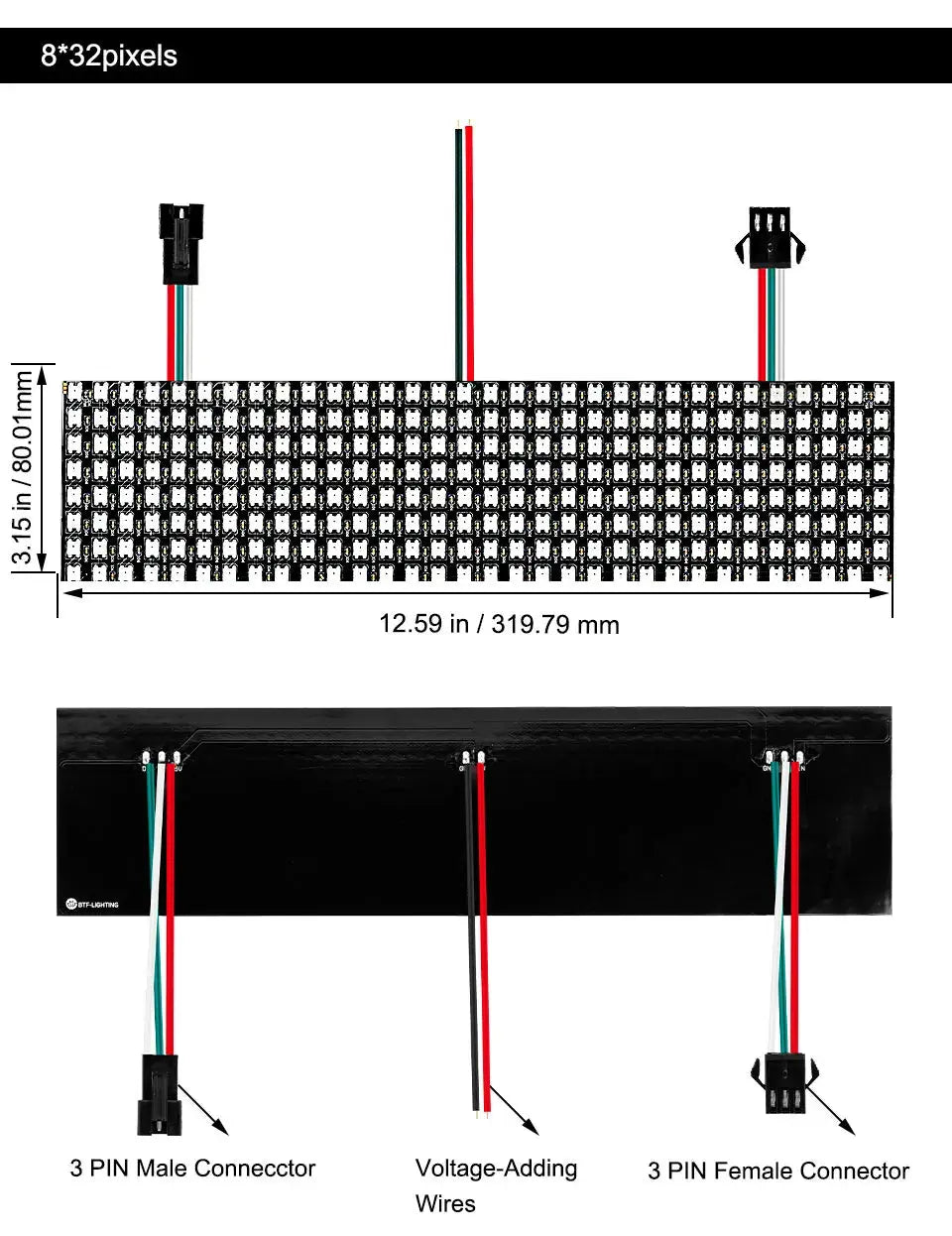

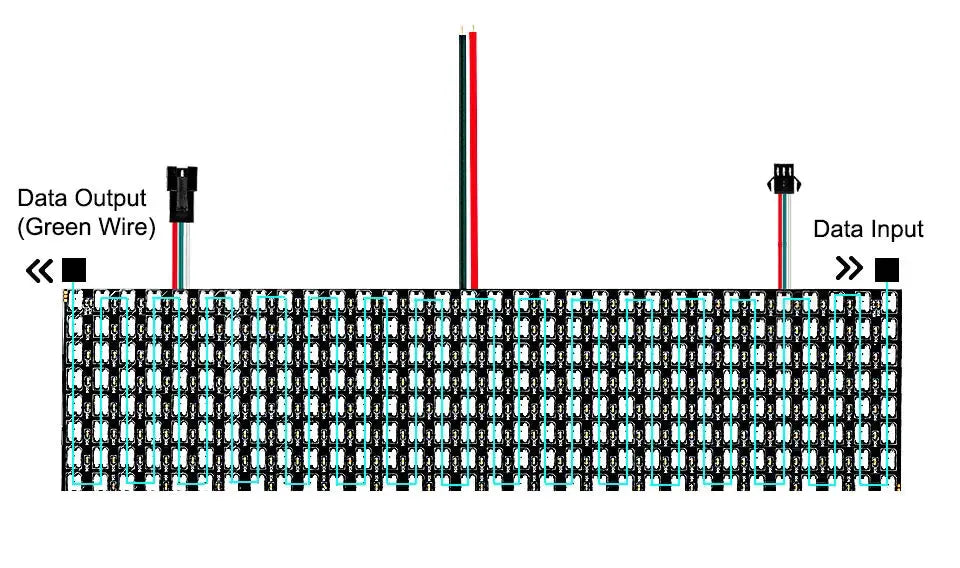

8*32, 256leds, 8cm*32cm


1. Emitting color: pixel RGB , IC WS2812

2. Work voltage: DC 5V

3. Power: 0.3W/pixel

4. Waterproof level: Non-waterproof

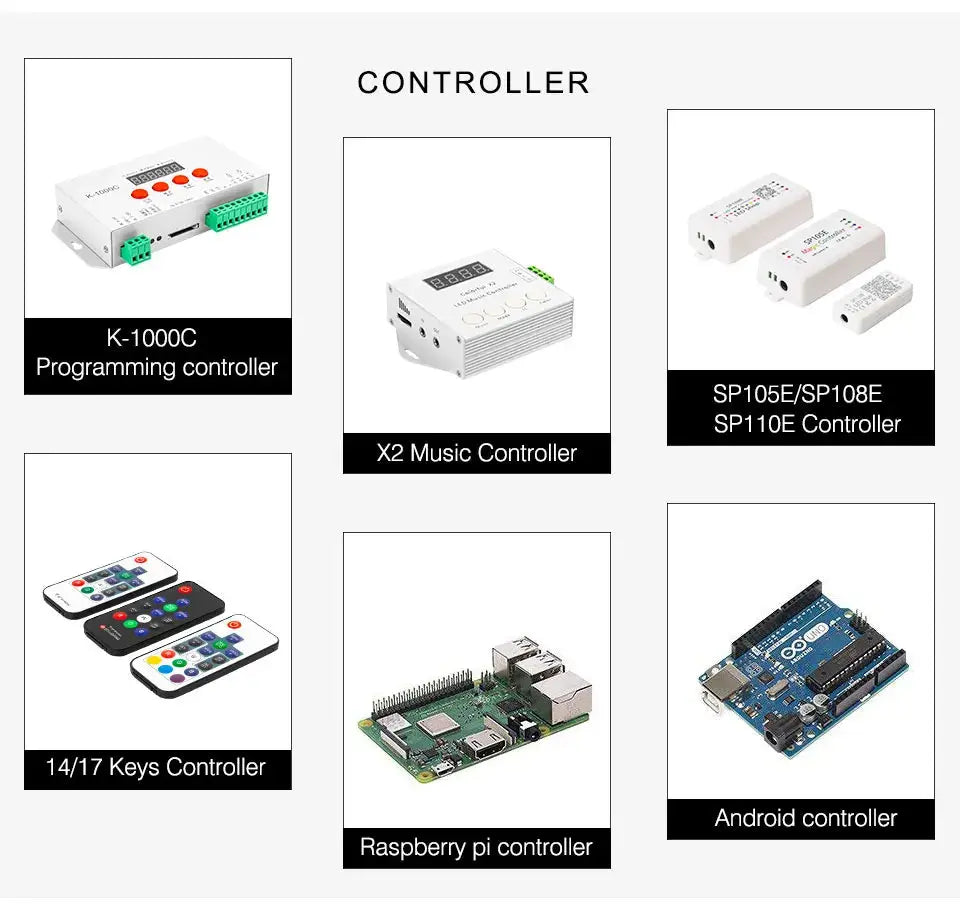

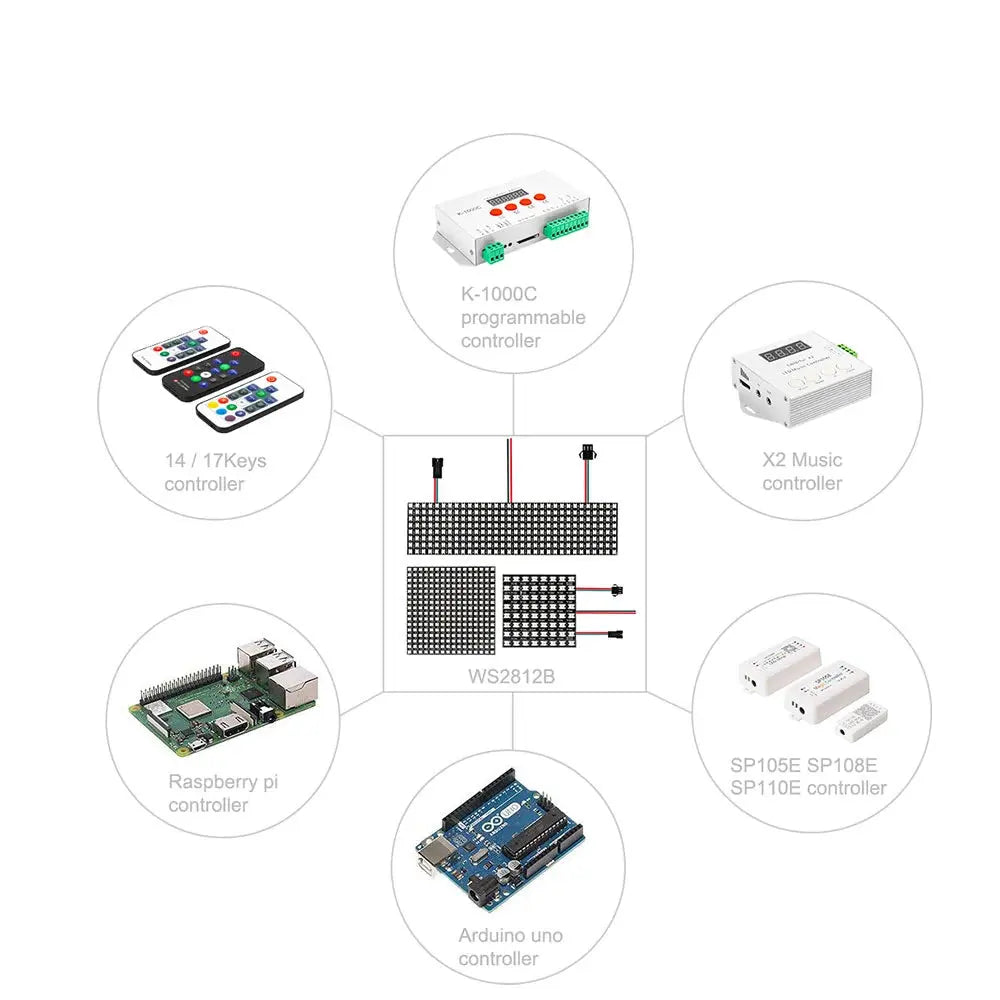

5. Working mode: external controller Arduino compatible.

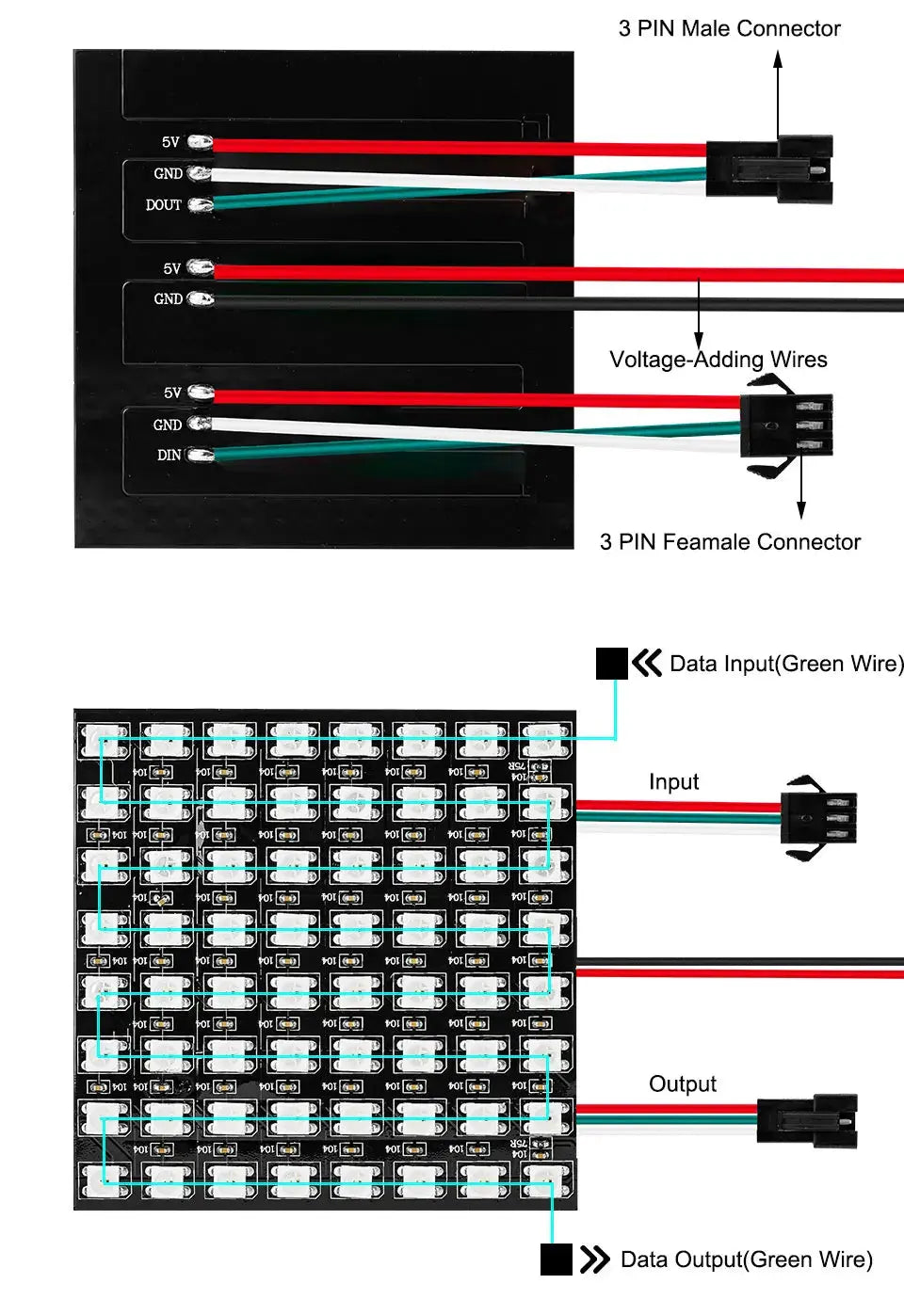

6. Connection: VCC: RED; GND:BLACK/WHITE; DAT:BLUE


Pixels WS2812 led digital flexible panel light(ws2811 IC controlled),DC5V input,

It's work with the programmable SD controller(not included), it can make flexible LED screen,

Arduino IC Digital Addressable Dream Color RGB LED Strip,

Arduino compatible. you can control the strip by your programmable arduino.


Technology advantages:

The WS2811 SMD5050 RGB LED, every led built-in(embedded) an WS2811 IC,, therefore every one led lignting effect can be control, every rgb led is digital addressable.


Easy installation:

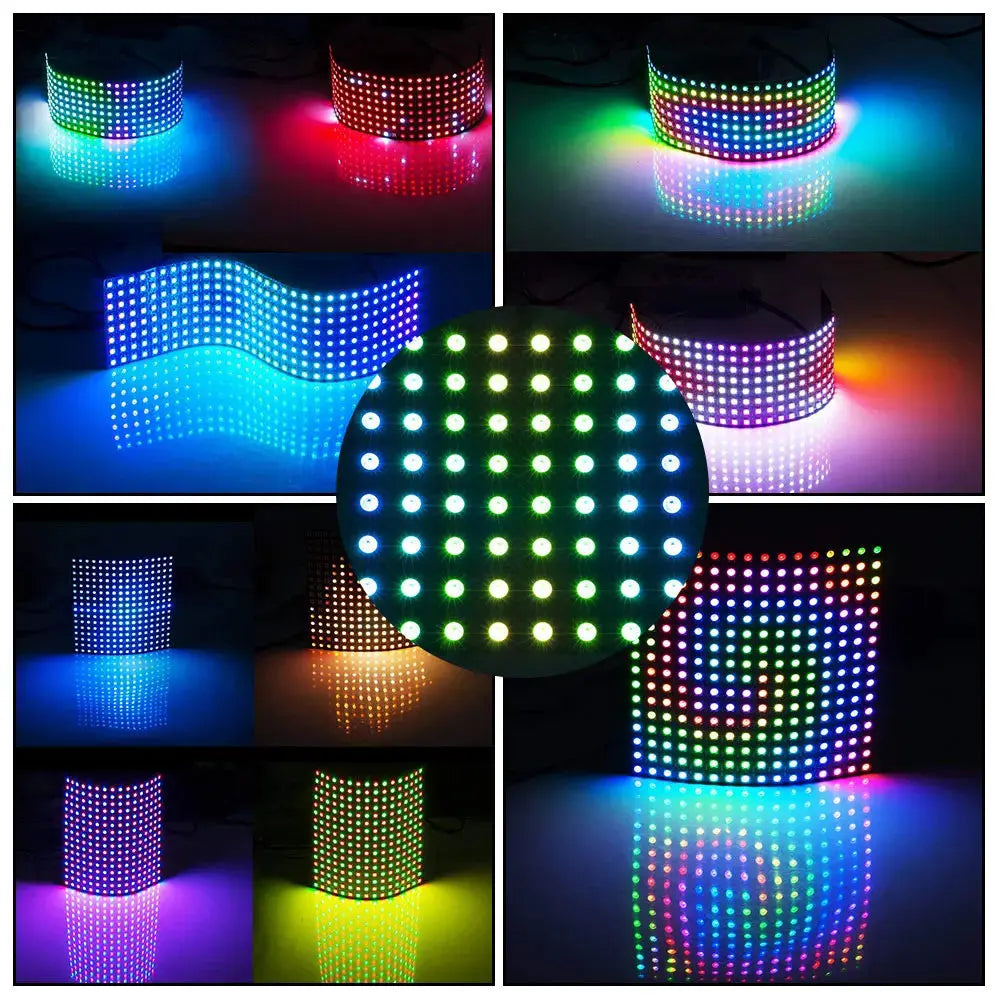

Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.


Dream color lighting:

Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.


Application:

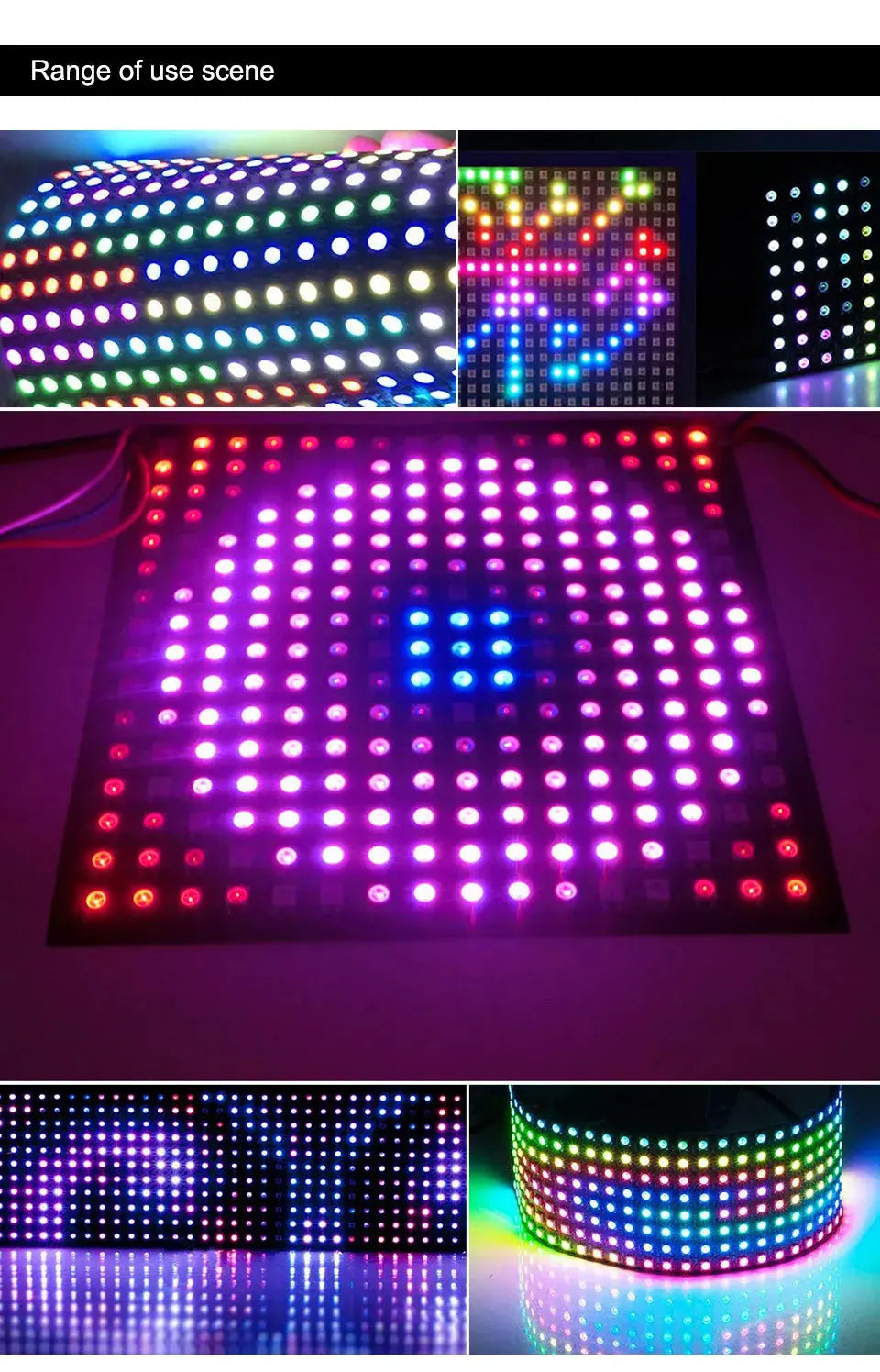

Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.

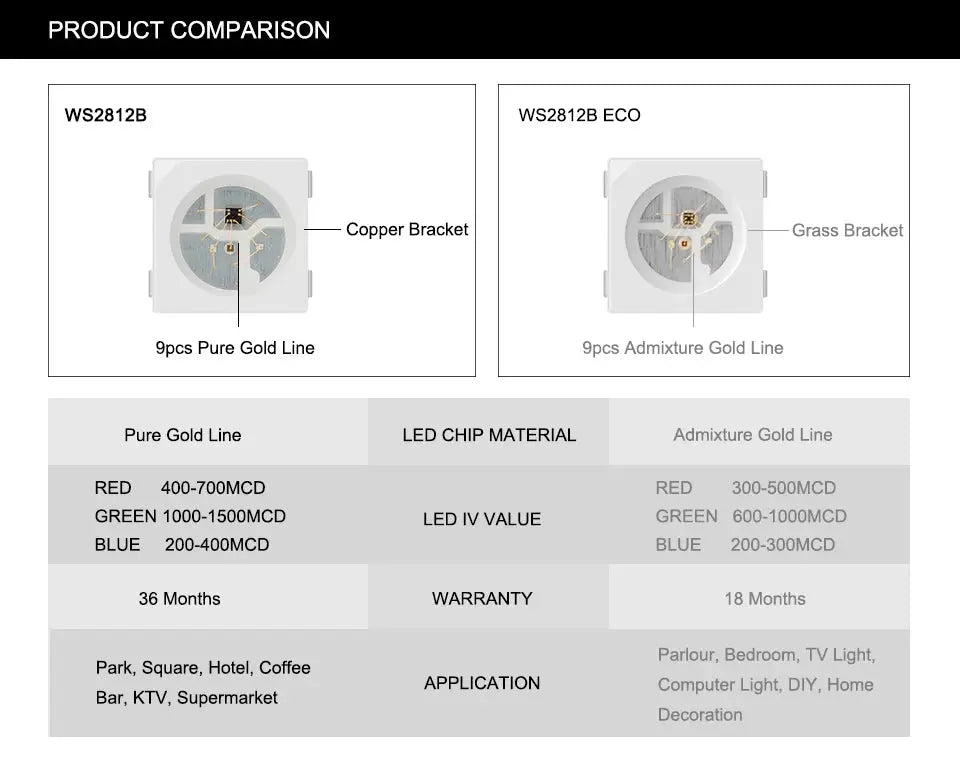

The different between the WS2812B and WS2812B-ECO.

1, LED Chip Material:
9pcs Pure Gold Line, Copper Bracket (WS2812B).

9pcs Admixture Gold Line, Brass Bracket (WS2812B-ECO).


2, LED IV Value Brightness:
Red: 400-700mcd, Green: 1000-1500mcd, Blue: 200-400mcd (WS2812B).

Red: 500-700mcd, Green: 1300-1800mcd, Blue: 300-500mcd (WS2812B-ECO).


3, Warranty Period of Led Strip:
36 Months (WS2812B), 18 Months (WS2812B-ECO).


4, Suggestions on Product Application:
Such as Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, etc (WS2812B).

Usually applied to Parlour, Bedroom, TV light, Karaoke Television light, Computer light, DIY and Home decoration, etc (WS2812B-ECO).
